Description

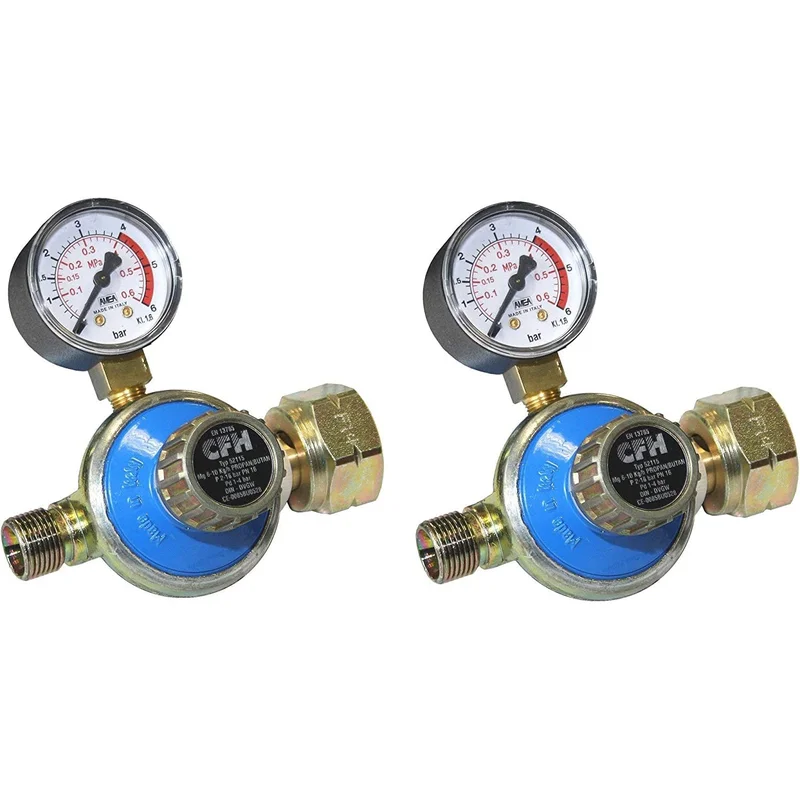

The propane regulator DR 115 is a pressure regulator for LPG with adjustable output pressure.
Permissible ambient temperature range: -20°C to +50°C DVGW/CE 0085
The propane regulator DR 115 is primarily suitable for hand-held small devices (e.g. CFH flame devices and CFH hose solders).
The output pressure is infinitely adjustable from 1-4 bar. This allows the working pressure to be optimally adapted to the work tool to minimise or increase performance if necessary.
The set control pressure (output pressure) can be read on the pressure gauge.
The tightness of the gas connection can also be checked with the help of the pressure gauge.
The propane regulator DR 115 is suitable for connection to 5 kg, 11 kg and 33 kg propane gas bottles. Outdoor use only.
Connection type input side: G.5 according to EN 16129 This propane regulator DR 115 is not intended for use on gas grills, heaters, caravans and motorhomes
Suitable for gas hoses with ball pin connection with union nut G 3/8 inch left (for connection H.6 according to EN 16129).
Output pressure: 1 – 4 bar adjustable. Flow rate: 6-10 kg/h. Please refer to the user manual of the consumer.
