Description

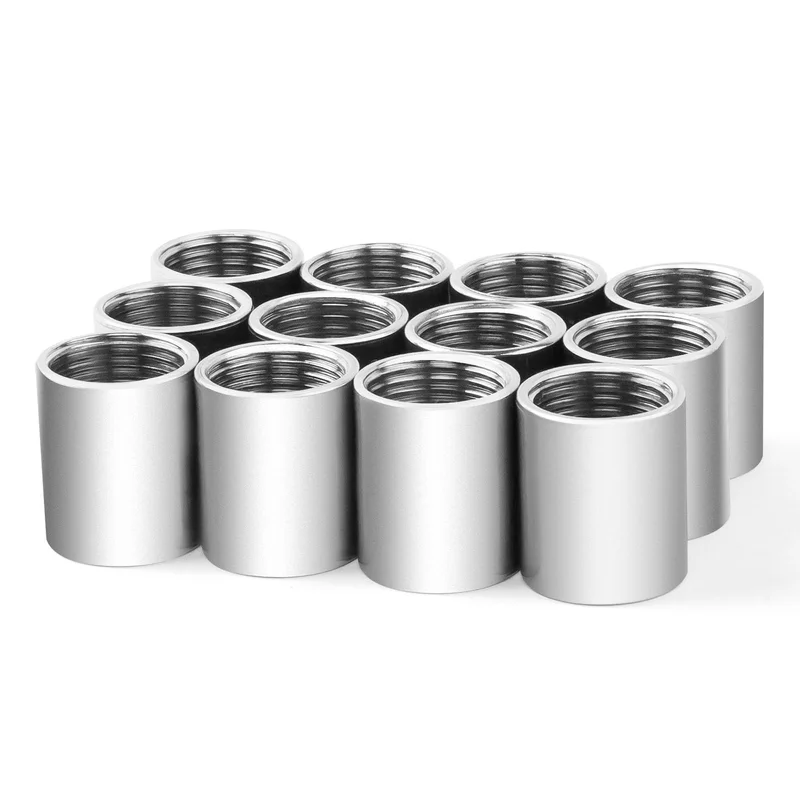

SIZE – 3/4″ NPT Female x 3/4″ NPT Female Coupling. Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.
MATERIAL – Made of high quality 304 stainless steel, it has excellent oxidation and corrosion resistance, high compressive strength, abrasion resistance, durability, good low temperature toughness, heat resistance and mechanical properties.
Use – It is used to connect male threaded pipe fittings of the same diameter or to extend the length of pipes. It is a pipe fitting specially used for pipe connection engineering. It is suitable for most gases, water, oils and corrosive liquids.
WORKING PRESSURE & TEMPERATURE – 225PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C)
NOTICE – NPT is a tapered pipe thread with a 60° taper and generally cannot be screwed to the end, these 304 stainless steel fittings are lead-free.
