Description

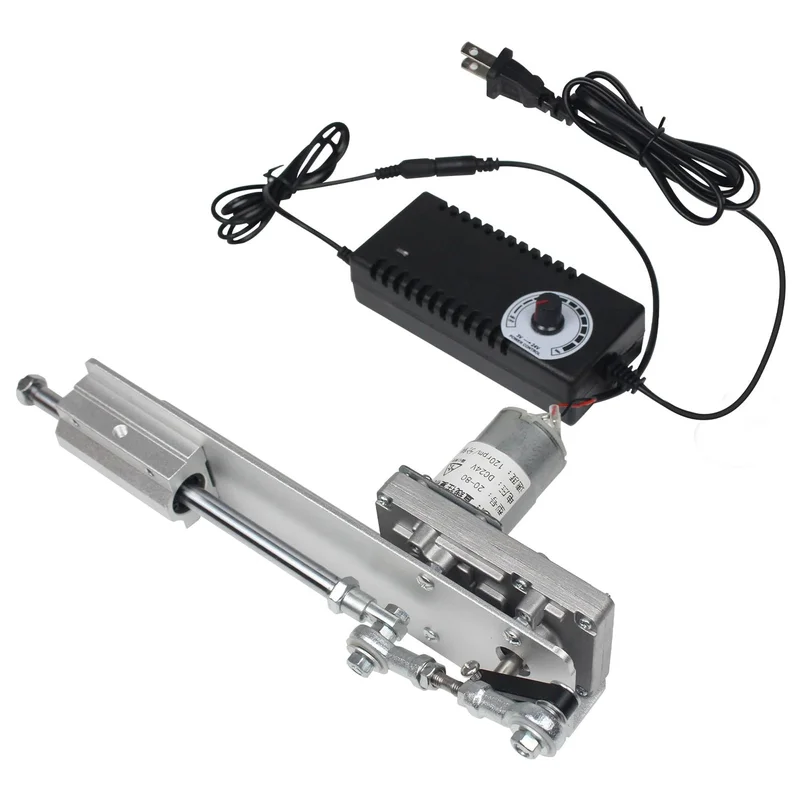

Reciprocating Linear ActuatorThe reciprocating mechanism includes a geared motor,an adjustable speed power supply,and a reciprocating device is already installed,plug and voltage: AC100-240V,50Hz/60Hz; Working voltage: DC24V
Infinitely adjustment of stroke Working voltage: DC 24V; Stroke range: 2-8cm (0.8″-3″) and within this range,the telescopic stroke can be infinitely adjusted.
Speed&ThrustMax speed: 120rpm; This means that at 24V voltage,the fastest stretching speed can be 120 times per minute; Thrust: 5-25kg (11lb-55lb).The push-pull force is mainly powered by the smaller the stroke,the greater the thrust.
High quality materialsAluminum alloy material,compact structure design;Chromium plated telescopic tube with high stiffness, high hardness, and good bending resistance, equipped with high wear-resistant bearings, durable, high-strength and large torque range swing arm, high tensile strength, wide adjustable range of telescopic stroke, strong motor horsepower, providing stability.
DC gear motor24VDC,adjustable speed of up to 120 revolutions per minute,maximum torque of 25kg/cm,hole spacing of 50x50mm,shaft diameter of 8mm,weight of 0.5kg (1.1lb), rated current of 0.6A,length and width of 60x102mm (2.36 “x4”); Adopting high-quality pure copper wire motor and integrated heat treatment gearbox, with low heat generation, sufficient power, multi-level reduction, metal gears, greater strength, and longer lifespan.
