Description

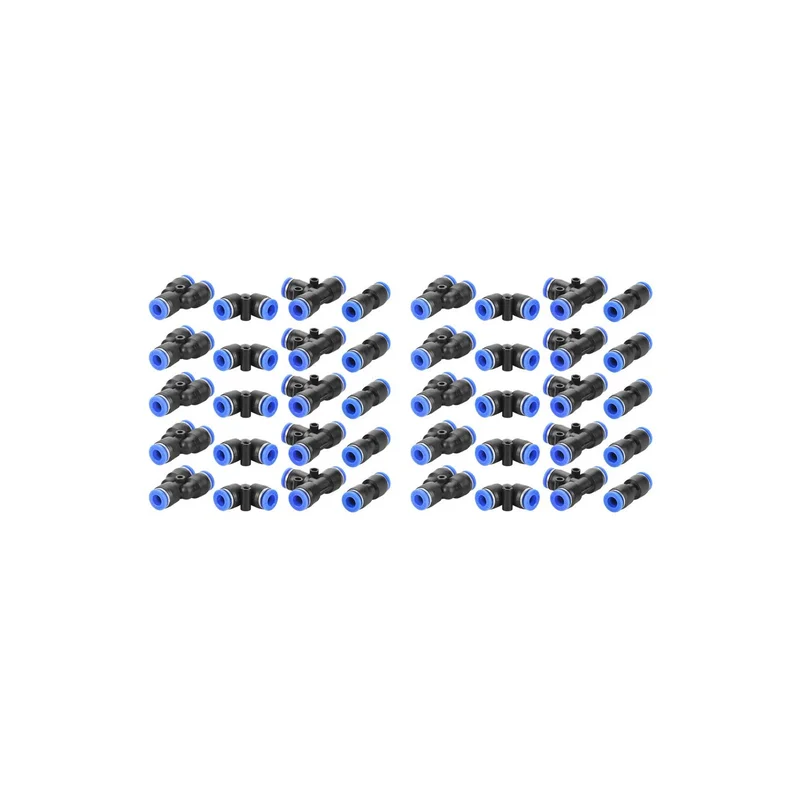

Main Function: The pneumatic quick connector is mainly used for quick connection of air piping, pneumatic tools, which can achieve pipe connecting or disconnecting without a tool requiring. High precision threads ensure its good sealing performance.
Premium Quality: This pneumatic quick connector is made of high quality material for long service life. Quick and easy to use, compact size can save space, no special tools required. Moreover, It doesn’t fall off under high pressure, safe and reliable.
Professional Design: Release ring with oval design is more convenient to disassemble. Simple installation by air push without extra sealing requiring. Pipe body can rotate 360 degree even if installed, which is simple and flexible.
Specification: Normal Pressure Range: 0-0.9MPa. Maximum Pressure: 1.32MPa. Low Pressure Range: -99.9-0Kpa. Operating Temperature: 0-60. Fit Hose Outer Diameter: 6mm.
Size: Straight Connector Length: 34mm/1.3in. Elbow Union Connector Length: 26mm/1.02in. Y Union Connector Length: 37.4mm/1.5in. Tee Union Connector Length: 41mm/1.6in.
