Description

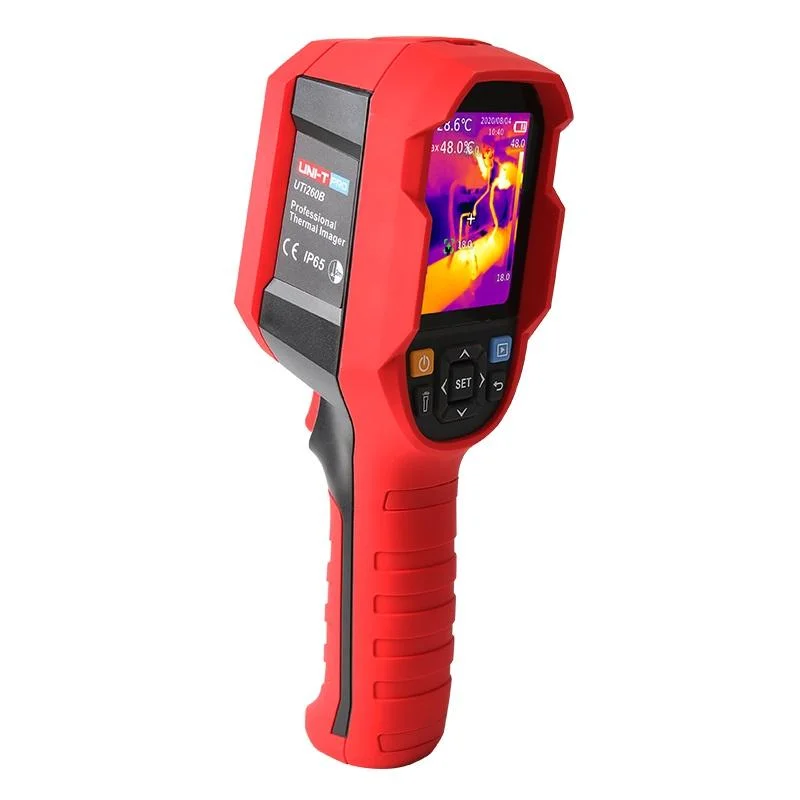

The Professional Thermal Imaging Camera Handheld Thermal Imager is a specialized device engineered to detect and translate thermal energy into visible light. Its particularly effective in identifying heating leaks in pipelines and inspecting automotive systems. The device stands out for its handy, handheld design that promotes portability and comfort.
This thermal imaging camera is valued for its high-resolution imagery and advanced capabilities in identifying hidden heat-associated issues swiftly and accurately. The ability to translate thermal energy into visible images almost instantly is beneficial in diagnosing automotive issues, allowing for quick problem-solving and maintenance.
In the realm of pipeline inspection, this thermal imager excels in heating leak detection. It discloses any thermal irregularities along pipelines, spotting potential leaks with remarkable precision. This becomes a critical advantage in preventive maintenance, leading to cost savings by preventing leaks from escalating into severe problems.
The Professional Thermal Imaging Camera Handheld Thermal Imager is essentially an amalgam of advanced technology and practical utility. Its ability to simplify and expedite thermal detection tasks in automotive inspect and pipeline heating leak scenarios significantly adds value to professionals dealing with these domains, making it a reliable and efficient tool in their arsenal.
Note:
order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-3 seconds. This is a normal phenomenon, so please dont worry.
This device has 2 temperature measurement ranges, low temperature range (-20°C~120°C) and high temperature range (120°C~550°C). When measuring temperature, please choose the correct measurement range according to the actual situation to avoid Temperature measurement error
Descriptions:
ET692C infrared thermal imager combines surface temperature measurement and real-time thermal images. There is no need to measure each component one by one like a traditional infrared thermometer. Potential problems can be clearly displayed on the color display, and the center point measurement cursor can quickly and accurately locate and measure the temperature of the target object. For added visibility, the product is equipped with a visible light camera. Both thermal and visible light images can be saved to the device, and the images can be read via USB or saved to a computer for report generation and printing. This product is small in size, easy to operate and has strong functions. It is an ideal choice for electric power, electronic manufacturing, industrial testing and other fields.
Features:
[Professional infrared sensor]: Clearer 256*192 infrared resolution, with 25Hz high frame rate images refreshing can easily capture subtle temperature changes
[Dual display modes]: Innovative infrared mode and visible light mode, the fusion rate can be manually adjusted(0%,25%,50%75%,100%), allowing you to freely control the visual effects
[Real-time measurement]: hot,cold and center temperature auto tracking ,with -20 to +550/-40 to +1022 measurement ranges, support and switch.
[Adjustable emissivity]:The emissivity coefficient can be adjusted as needed, ranging from 0.01 to 1.0, to improve the accuracy of measurements of semi-reflective surface objects.
[5 imaging modes design]rainbow, iron oxide red, cold color, black & white, white & black five imaging modes can be select
[4 languages]: support Chinese/English/German/Italian , time and date setting
[Photo & Video Recording ] Built-in 6.6G storage space, supports taking photos and video recording, allowing you to store and access data anytime andanywhere
[PC Analysis]: Data can be easily transferred to the computer through Type-C cable, compatible with WinXP, Win7, Win8, and Win10 systems, and supports offline data analysis.
Specification
Model:ET692C
Infrared detector type: Uncooled infrared focal plane of vanadium oxide
Display screen:3.2Inches
Infrared image resolution256×192
LCD resolution320×240
Field angle/focus length56°x42°/ 4.0mm
IFOV3.75mrad
Pixel spacing12um
Frame rate25Hz
Focusing modeFixed
NETD:
Wavelength coverage:8~14um
Lmage display mode: Infrared/visible light/dual light fusion
Emissivity:Adjustable from 0.01 to 1.0
Color palette:Rainbow, iron oxide red, cold color,white hot, black hot
Software analysis& Video:Support
Measuring range20~+550(-4~1022)
Accuracy:-15 ~ 550 (± 2 /± 2%);-20 ~-15 (± 4 )
SettingUnit LanguageDate TimeInformation
LanguageChineseEnglishGerman Italian
Storage capacityBuilt-in 8G(user available storage space is about 6.6G)
File formatJPG/MP4
Battery typeBuilt-in 18650 battery
Work temperature-10~50
Storage temperature-20~+60
Relative humidity10% to 85%RH
Power interfaceType-C
Battery capacity:2200mAh
Working time:2~3hours
Product size:90x105x223mm
Product weigh:389g
Package List
1 x ET692C 256*192 Thermal Imager
1 x Type-C Cable
1 x English User Manual
1 x Box
